How Tight Should an Oil Filter Be?

That is the whole answer to the question people actually type. The rest of this page is the part that matters commercially: why the spec is a turn count instead of a torque figure, the five installation mistakes that produce leaks, and why, in our experience as a filter manufacturer, the large majority of filters returned as "defective" are undamaged filters that were fitted wrong.

Why the spec is turns, not torque

A spin-on filter does not seal by clamping force the way a bolted flange does. It seals because a rubber gasket is compressed a specific amount into the flat machined face of the mounting base. What matters is how far the gasket is squashed, and the only practical way to control that in the field is to count rotation from the moment the gasket makes contact.

Torque is a poor proxy for the same thing because friction varies wildly. A dry gasket, a rusty thread and a cold filter can absorb most of the applied torque before any of it reaches the gasket, so a technician chasing a torque number on a dry filter will drive the gasket far past its design compression while the wrench still reads low. That is why manufacturers print a turn count on the can instead.

Where a torque figure is quoted at all for common automotive spin-ons, it lands around 15–20 N·m (11–15 lb-ft) — which is genuinely not much, and is roughly what a firm grip delivers. Treat it as a sanity check, never as the instruction.

One rule covers every row: the instruction printed on the filter overrides any general guidance, including this page. Manufacturers put it there because gasket section and diameter differ between part numbers.

The five mistakes that cause leaks

Nearly every "the filter leaked" call traces to one of these. None of them are exotic.

1. Double gasket — the one that destroys engines

When the old filter comes off, its rubber gasket sometimes stays stuck to the mounting face. Fit the new filter over it and you have two gaskets stacked. The joint feels perfectly normal to the hand — it may even feel better — and it holds until oil pressure comes up. Then it blows out, dumps the sump in seconds, and the engine seizes.

This is the single most expensive filter mistake there is, it is invisible unless you look for it, and no amount of tightening prevents it. Always check that the old gasket left with the old filter, and wipe the face.

2. Over-tightening

Past the specified turn count, the gasket stops compressing and starts deforming. It folds, extrudes sideways out of its groove, or takes a permanent set. All three create a leak path instead of closing one. Over-tightening can also bow the filter base plate, which lifts the sealing face out of flat. The counter-intuitive part, and the reason this mistake is so persistent: the leak appears because it was tightened too much, so the instinct is to tighten it further.

3. Using a wrench to fit the filter

A claw or chain wrench concentrates load on a small patch of thin steel. It dents the can, thins the material and work-hardens it. A filter can operating at full oil pressure and temperature with a thinned wall is a genuine burst risk, and a burst filter empties an engine as fast as a blown gasket does. Filter wrenches are removal tools. If a large filter genuinely cannot be gripped by hand, use a cap-type or strap wrench that spreads load, and stop at the specified turn.

4. Fitting the gasket dry

A dry gasket grips the mounting face and rotates with the filter instead of sliding on it. It twists as it compresses, which both spoils the seal and makes the filter far harder to remove next service — which is where the wrench damage in mistake 3 comes from. A thin smear of clean engine oil on the gasket is the entire fix. Use engine oil, not grease: grease can swell some elastomers and does not wash away.

5. A dirty or damaged sealing face

Grit, old gasket residue, or a scored mounting face all give the gasket something to seal against that is not flat. Wipe the face with a clean lint-free rag before fitting — and inspect the new filter for transit damage while you are at it. A can that has been dropped hard enough to dent the base plate should not go on an engine.

Correct spin-on filter installation

1. Inspect the new filter. Check the can and base plate for dents and the gasket for nicks, twists or a missing seal. Confirm the part number cross-references correctly to the engine.
2. Remove the old filter and check its gasket. Look at the old filter: the rubber ring must be on it. If it is not, it is on the engine — find it and remove it.
3. Wipe the mounting face clean with a lint-free rag and check it is undamaged.
4. Oil the new gasket with a light film of clean engine oil, all the way round.

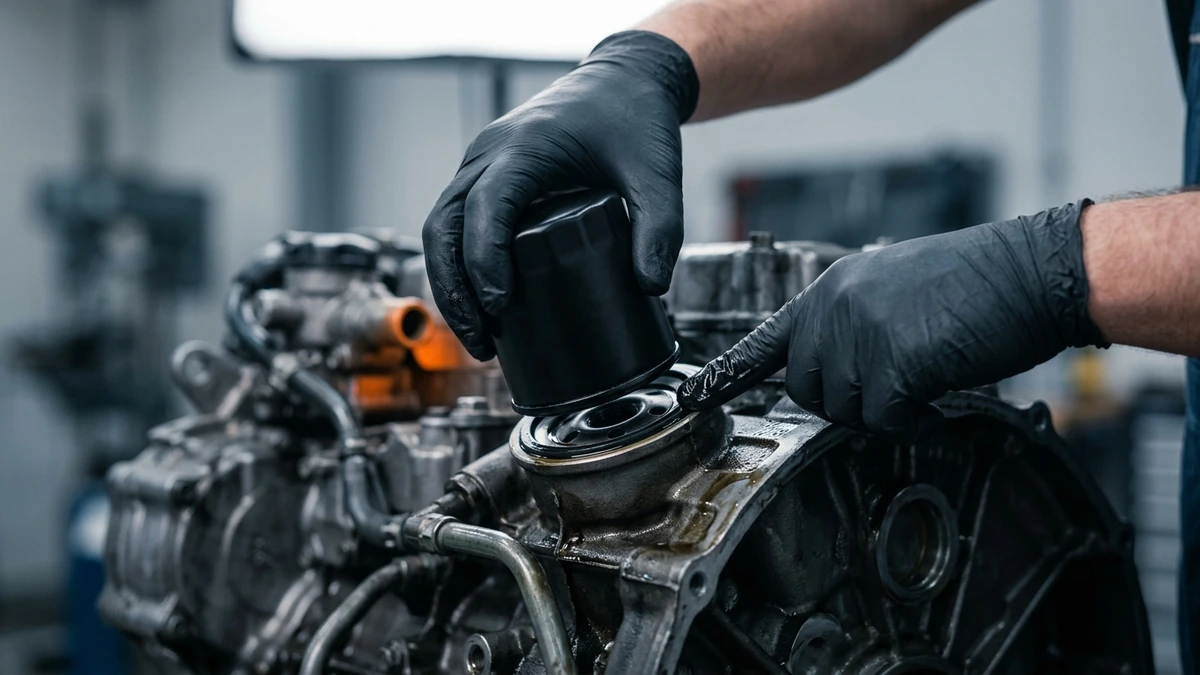

5. Thread it on by hand until the gasket just touches the base. You will feel the resistance change. Mark that position with a line if the turn count is hard to judge.
6. Turn the specified amount further — the figure on the can, typically 3/4 to 1 turn. Then stop.
7. Run and check. Refill, start the engine, confirm oil pressure comes up, and watch for the warning light to extinguish. Shut down, wait a few minutes, then inspect the sealing face for weeping and re-check the oil level.

On pre-filling: filling a filter before fitting shortens the dry-start period, which is worth having on a large diesel. Only do it where the filter mounts vertically, pour into the outer ring of holes rather than the large centre tube — the centre tube is the clean side, and anything you pour down it reaches the bearings unfiltered — and only from a clean, covered container. If those conditions cannot be met, fit it dry and let the anti-drainback valve and a few seconds of idle do their job.

Cartridge filters play by different rules

Element-only cartridge filters, now standard on many modern diesels, invert most of the advice above:

• They are genuinely torque-specified. The housing cap has a figure in the engine manual — often around 18–25 N·m, but engine-specific. Use a torque wrench. Plastic housings crack when guessed at, and the crack is usually invisible until it leaks hot.
• Replace every O-ring in the kit, every time. A good cartridge kit ships with all of the seals it needs. Reusing a compressed O-ring because "it looked fine" is a leak booked for later.
• Lubricate the O-rings with clean engine oil so they seat without rolling or pinching in the groove.
• Seat the element on its locating features. Some designs open a drain valve in the housing when the element is removed; an element that is not properly located can hold that valve open.

Fuel, water separator and air filters

The same "casual installation" habits do different damage on the other two circuits, and on a diesel the fuel side is the expensive one.

Fuel filters and water separators

Spin-on fuel filters follow the same gasket rules — clean face, oiled seal, hand-tight plus the printed turn count. Two additions matter more here than anywhere else:

• Do not pre-fill a fuel filter from a jerry can. This is the classic way to put dirt and water straight into the clean side of a filter, downstream of every protection the system has, and send it directly to the injection pump. Fit dry and prime with the hand primer or lift pump. It takes longer and it is the difference between a filter change and an injection system.
• Refit the water sensor and drain assembly correctly, and drain the bowl after the first run. A separator whose bowl is cross-threaded or whose sensor is left disconnected is a water alarm that will never sound.

Air filters

An air filter seals on radial or axial contact, not on a threaded joint, and it is fitted by hand only:

• Radial-seal elements push straight in until the seal grips the outlet tube. Never lever, hammer or force one — if it does not seat, it is the wrong part or the housing is damaged.
• Axial-seal elements use a wing nut. Over-tightening it distorts the end cap and opens a bypass path around the media — you get dust past a perfectly good filter, which is exactly the failure mode described in our intercooler cleaning guide.
• Do not clean and reuse elements. Tapping, blowing out or washing a paper element opens pinholes in the media that pass exactly the fine abrasive particles the filter exists to stop.
• Check the housing and ducting while it is open. Most dust that reaches an engine gets past the seal or through a cracked duct, not through the media.

Diagnosing a filter that was fitted wrong

Why this costs distributors money

If you buy filters in volume, installation error is not a workshop curiosity. It is a line item on your P&L, and it arrives disguised as a product quality complaint.

• Most "defective filter" returns are not defective filters. A crushed gasket, a wrench-dented can and a double-gasket blow-out all present to the end customer as "your filter leaked." The claim lands on the distributor first, and by the time the evidence is examined the filter has usually been thrown away.
• The damage is diagnosable, and it is visible. Photograph the sealing face and the can before accepting any leak claim. A folded or extruded gasket, a dented can, a bowed base plate, or two gaskets on the engine are unambiguous — and they are the difference between a credit note and a coaching conversation.
• Consequential claims are the real exposure. Nobody remembers the price of the filter when the argument is about a seized engine. Being able to demonstrate installation error quickly is worth far more than any margin on the part.
• Instruction in the local language is cheap insurance. In export markets the fitter frequently cannot read what is printed on the can. A one-page installation card in the right language, shipped with the carton, removes a large share of these claims for effectively no cost.
• Attach the tools that prevent the damage. Cap-type filter wrenches in the sizes your top-selling filters use are a cheap, high-margin add-on that directly reduces the returns you will otherwise process.
• Confirm the part number before blaming the part. A filter that is dimensionally close but wrong will thread on and seal, and then fail on bypass pressure or flow. Our cross-reference tool and the printable PDF chart settle that question in seconds.

Filters that are easy to fit correctly generate fewer claims. That is a manufacturing consideration as much as a training one — consistent gasket section, a base plate that stays flat, a can gauge that tolerates a careless technician, and legible instructions on the filter itself. It is part of how we benchmark against Fleetguard, and it is what our oil filters are specified around.
